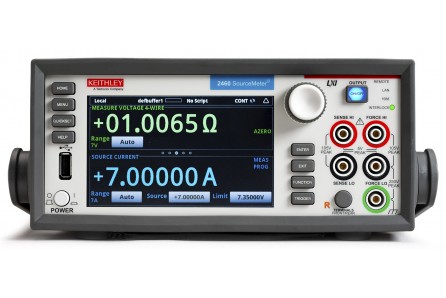

Keithley Źródło mierzące Keithley typ 2460 - opis
- One tightly coupled instrument that combines capabilities from analyzers, curve tracers, and I-V systems at a fraction of their cost
- Wide coverage up to 105V, 7A DC/7A pulse, 100W maximum
- Five-inch, high resolution capacitive touchscreen GUI
- 0.012% basic measure accuracy with 61digit resolution
- Source and sink (4-quadrant) operation
- Four "Quickset" modes for fast setup and measurements
- Context-sensitive help function
- Front panel input banana jacks; rear panel input mass termination screw connections
- 2460 SCPI and TSP® scripting programming modes
- Front-panel USB 2.0 memory I/O port for transferring data, test scripts, or test configuration
