Siglent Technologies SHA860A

Product Overview

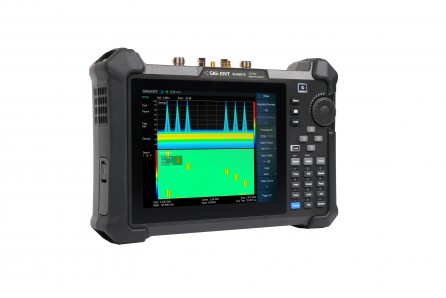

Siglent SHA860A series, a next-generation handheld signal analyzer, integrates spectrum analysis, vector network analysis, and cable/antenna testing into a single portable platform, offering a comprehensive solution for 5G/LTE base station deployment and maintenance. Supporting a 9 kHz to 7.5 GHz frequency range and 110 MHz real-time bandwidth, it features advanced capabilities like 5G NR/LTE OTA testing, real-time spectrum analysis, pulse profile analysis, and GPS-synchronized indoor/outdoor mapping. This empowers technicians to optimize beam performance, troubleshoot interference, and accelerate network deployment with precision, while its integrated design enhances on-site testing efficiency and portability.

<iframe width="560" height="315" src="https://www.youtube.com/embed/fH0yPX9iEkY?si=0zNEqfVA2jJRvR5M" title="YouTube video player" frameborder="0" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture; web-share" referrerpolicy="strict-origin-when-cross-origin" allowfullscreen></iframe>

Key Features

    Frequency Range 9 kHz~3.6/7.5 GHz, 5 kHz usable
    Displayed Average Noise Level (DANL) -165 dBm/Hz
    SSB Phase Noise -104 dBc/Hz.@1 GHz, 10 kHz offset
    Analysis Bandwidth 40/110 MHz
    5G NR OTA Measurement, multi-PCI and multi-beam analysis
    LTE FDD and TDD OTA Measurement, multi-PCI analysis
    Channel Power, Occupied Bandwidth, Adjacent Channel Power, SHI and TOI etc.
    IQ Data Acquisition in 110 MHz Band Width
    Real-Time Spectrum Analysis in 110 MHz Band Width, 100% POI time 3.51 μs
    Pulse Profile Measurements
    Indoor and outdoor map for Coverage Mapping
    Trace Recording/Playback with GNSS location
    AM/FM/PM Analog Modulation Analysis, and ASK/FSK/PSK/MSK/QAM Digital Modulation Analysis
    AM/FM/PM Analog Modulation Audio Tune & Listening
    Field Strength (EMF) Measurements and EMI Measurements
    Independent Source to 7.5 GHz
    Vector Network Analyzer, 1-Path 2-Ports S11 and S21 Network Analysis
    S11 directionality 40 dB, S21 dynamic 114 dB
    Cable and Antenna Test, Distance To Fault and Time Domain Analysis
    TTA test, bias out 12V to 32V DC
    Chargeable Battery working time 2.5 hours, 3.2 kg net weight
    8.4 lnch Multi-Touch Screen, mouse and keyboard supported
