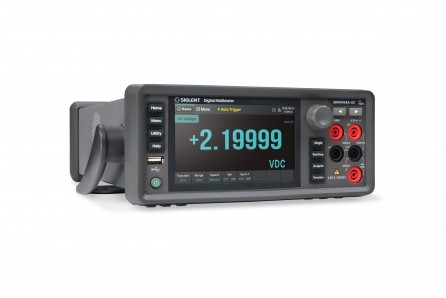

Siglent Technologies SDM4055A

Product Overview

The SDM4055A digital multimeter and SDM4055A-SC digital multimeter are designed with 5 ½ digits readings resolution and dual-display, especially fitting to the needs of high-precision, multifunction and automatic measurement.

The SIGLENT SDM4055A-SC includes a multiplexer that provides multi-point measurement capabilities. The scanner features 12 multi-purpose + 4 current channels and supports the following measurement functions: DCV, ACV, DCI, ACI, 2WR, 4WR, CAP, FREQ, DIODE, CONT and TEMP (RTD and Thermocouple ). It provides a convenient and versatile solution for test applications that require multiple measurement points or signals and is an ideal tool for R&D burn-in and production testing.

NOTE: The scanner is included on new SDM4055A-SC products only. It cannot be added to SDM4055A-SC instruments at a later time.

Key Features

   -  True-RMS AC Voltage and AC Current Measurements
   - 256 MB Nand Flash, supports storage of various types of files such as readings, images, configuration files
   - Support automatic switching between 10 A high current and 3 A low current measurement modes, and can test up to 30 A when paired with an external shunt
    - Support standard SCPI remote control commands, equipped with EasyDMM-X host computer control and sampling software
    - Communications interface: USB Device (optional USB-GPIB adapter), USB Host, LAN
